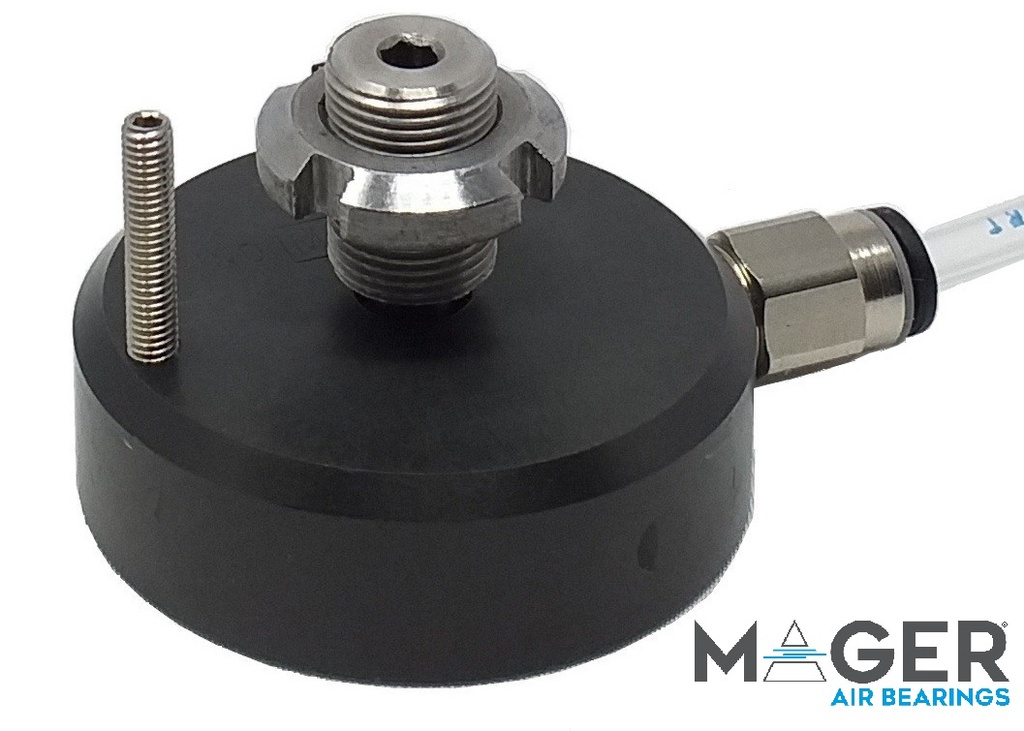

HPC1.0
https://www.mager-ab.cloud/shop/wf10200p01000-hpc1-0-1349 https://www.mager-ab.cloud/web/image/product.template/1349/image_1920?unique=4017d17HPC series includes a wide range of flat air bearings with different dimensions so as to meet the requirements of customer projects. They can be easily integrated in complex motion systems and they can be easily applied or replaced.
| Model | HPC1.0 |
|---|---|
| Code | WF10200P01000 |
| Dimensions | Ø 40.0 x 12.0 mm |
| Weight | 0.05 kg |
| Mounting Kit | P-KIT A1 |
| Screw pin – thread | M10x0.75 |
| Nominal air supply pressure | 4.0 bar |
perfomances @ 10µm air gap
| Load | 210.0 N |
|---|---|
| Stiffness | 18.0 N/µm |
| Air consumption | 2.2 ÷ 2.2 l/min (ANR) |
perfomances @ maximum stiffness
| Maximum stiffness | 21.5 N/µm |
|---|---|
| Air gap | 6.5 µm |
| Load | 280.0 N |
| Air consumption | 3.5 ÷ 3.5 l/min (ANR) |
