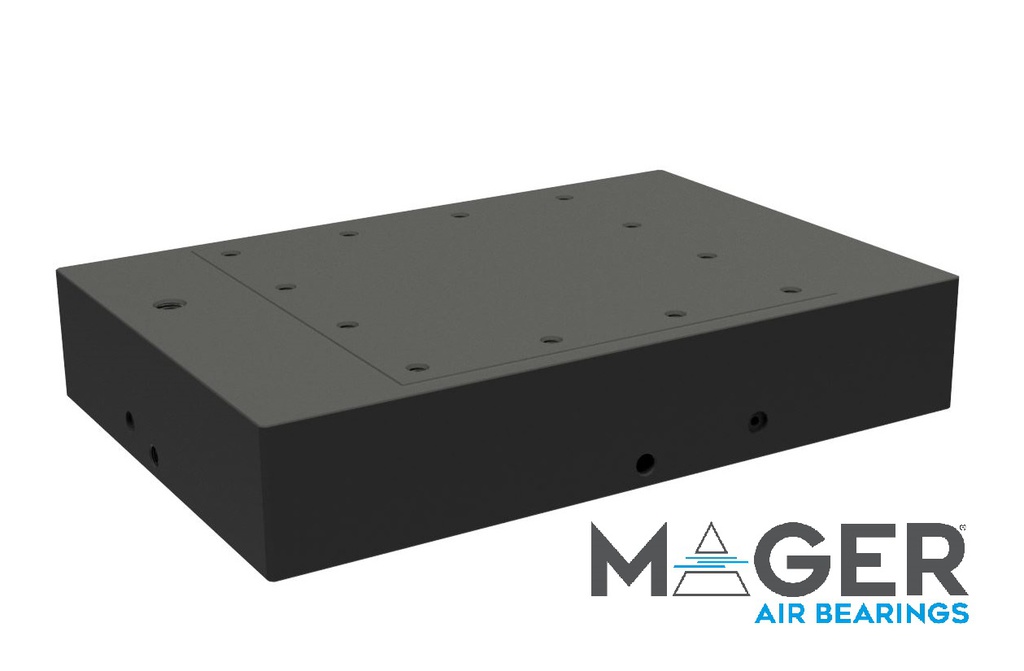

HRA-7010STN
https://www.mager-ab.cloud/shop/wf10100h504t0-hra-7010stn-1367 https://www.mager-ab.cloud/web/image/product.template/1367/image_1920?unique=27238ffHRA series is the perfect choice when it is important to overcome the resistance to movement in applications where: • there are relatively high errors on sliding guides (flatness, straightness, roughness, etc.) • there is presence of pollutants as dusts and scraps, oils and greases, process and protection gases • there are high temperaturesHRA models are available in more than one version thus in different code options : with or without mounting kit P-KIT, with or without wipers R-KIT and several coatings options. Customers can find details of the available options simply downloading the drawings. HRA 7010STN is a special version available without mounting kit P-KIT and without wipers R -KIT
Model | HRA-7010STN |
---|---|
Code | WF10100H504T0 |
Dimensions | 220.0 x 320.0 x 60.0 mm |
Weight | 11.2 kg |
Screw pin – thread | |
Nominal air supply pressure | 5.0 bar |
perfomances @ maximum stiffness
Maximum stiffness | 170.0 N/µm |
---|---|
Air gap | 28.0 µm |
Load | 13000.0 N |
Air consumption | 0.0 ÷ 0.0 l/min (ANR) |
